Engineered for landmark media facades, suspension bridges, Ferris wheels, and 3D architectural mesh skins. Featuring UCS512G6 / WS2811 ICs, auto-addressing, dual-signal breakpoint resume, and IP67 PU/silicone vacuum potting for extreme exterior longevity.
An engineering breakdown of individually addressable architectural dot fixtures designed for large-scale volumetric media displays and contour illumination.
Unlike standard static string lights, each LED pixel node contains an integrated driver IC (UCS512G6 / WS2811) that processes independent RGB/RGBW color channels (DMX512 3/4-channel mapping), enabling video-rate animation across building facades. Whether that animation reads at distance depends on the surrounding facade lighting layer, not the pixel pitch alone.
Solid-state encapsulation using optical-grade, UV-stabilized polyurethane (PU) or silicone elastomer prevents moisture ingress, salt-spray corrosion, and condensation within coastal, high-humidity, and marine installations.
Pixels are interconnected via UV-resistant rubber or PVC flat cabling with customizable center-to-center pitch (50mm–500mm), allowing freeform adaptation to double-curved facades, spheres, spires, and cable-net structures.
From ultra-compact accent dots (X30) to high-lumen high-mast architectural illuminators (CL80), select the precise physical diameter and photometric output for your project.




Customize beam distribution, glare control, and aesthetic surface diffusion with 4 distinct optical polycarbonate covers.

180° ultra-wide diffusion with zero hot spots. Ideal for building media facades with close-to-medium viewing angles.
Beam: 180° Wide Diffusion
Multi-faceted crystal prism creates a sparkling, diamond-like refraction effect for theme parks, Ferris wheels, and bridges.
Beam: Sparkling Prismatic
Low-profile flush lens with 92% high luminous transmittance. Designed for embedded facade punch holes and aluminum track profiles.
Beam: 120° High Transmittance
Precision TIR optical lens concentrating light into narrow 15°/30° beams for architectural spires and long-distance throw.
Beam: 15° / 30° / 45° SpotEngineered to conquer demanding architectural geometry, dynamic wind loads, and harsh weather conditions.

Transforms commercial glass curtain walls and concrete structures into dynamic digital landmarks with customizable pixel pitch.

Vibration-tested fixtures with diamond prismatic covers producing breathtaking dynamic radial patterns on rotating structures.

Stainless steel wire rope clips and marine-grade anti-corrosion PU potting withstand harsh salt fog and high wind shear.

Flexible 3-axis cable articulation allows organic pixel placement across complex curved geodesic geometry.

Heavy-duty aluminum track mounting with integrated lightning surge protection and high-throw narrow beam optics.

Translucent tensile mesh integration creating ambient starry sky canopies and volumetric interactive light ceilings.
Understanding the architectural difference between industrial RS-485 differential DMX512 and TTL single-ended SPI.
Complete photometric, electrical, and mechanical parameters across all MEKALEO LED pixel light series.
| Series Model | Dimensions (mm) | LED Config | Power / Node | Voltage | IC Protocol | Luminous Flux | IP Rating |
|---|---|---|---|---|---|---|---|
| X30 | Ø30 × H20 | 3 pcs SMD3535 | 0.72 W | DC 12V | SPI / DMX512 | ≥ 18 lm | IP67 PU Potting |
| MDL35 | Ø35 × H22 | 4 pcs SMD3535 | 0.96 W | DC 24V | UCS512G6 | ≥ 26 lm | IP67 PU Potting |
| X40 | Ø40 × H24 | 6 pcs SMD2835 | 1.20 W | DC 24V | UCS512G6 / WS2811 | ≥ 34 lm | IP67 PU Potting |
| MDL45 | Ø45 × H26 | 6 pcs SMD3535 RGBW | 1.44 W | DC 24V | DMX512 RDM | ≥ 45 lm | IP67 PU / Silicone |
| X50 | Ø50 × H28 | 6 pcs SMD3535 RGBW | 1.68 W | DC 24V | DMX512 RDM | ≥ 58 lm | IP67 PU / Silicone |
| MDL60 | Ø60 × H32 | 9 pcs SMD3535 High-CRI | 2.88 W | DC 24V | DMX512 Dual Signal | ≥ 95 lm | IP67 Solid Silicone |
| CL80 | Ø80 × H38 | 12 pcs High-Lumen SMD | 4.50 W | DC 24V | DMX512 Dual Signal | ≥ 160 lm | IP67 Solid Silicone |
How point light sources compare against LED mesh screens, linear wall washers, and floodlights across key engineering metrics.
Four standard mechanical integration methods and critical power injection rules to eliminate DC voltage drop.
Pixels snap directly into extruded aluminum U-channels. Conceals all inter-module wiring for a seamless daytime appearance on architectural mullions.
Suspended via Ø2.0mm/3.0mm 316 stainless steel wire ropes. Ultra-lightweight system with zero structural load on historical and glass facades.
Pixels push-fit directly into precision CNC laser-cut holes in aluminum composite panels (ACP), creating an invisible built-in night media skin.
Rotatable mounting brackets secured with 304/316 stainless steel fasteners for complex structural steel spires and Ferris wheel spokes.
To maintain strict <5% color consistency across all pixels, DC24V circuits require dual-end power injection every 100 pixels (or 15 meters). DC12V circuits require power injection every 50 pixels (or 8 meters). Main power trunk cables must utilize minimum 2.5mm² (AWG 14) oxygen-free copper core.
Transparent engineering cost variables to help project managers and procurement officers calculate realistic project budgets.
Dense pitch (P50: 400 dots/m²) delivers crisp graphic resolution but increases fixture count. Sparse pitch (P200: 25 dots/m²) dramatically lowers total investment for high-altitude landmarks.
Industrial DMX512/UCS512G6 with RDM auto-addressing carries a slight IC premium over basic SPI WS2811, but saves over 60% in on-site engineering commissioning labor.
Factory pre-customized cable lengths tailored to facade blueprints eliminate on-site splicing errors and ensure certified factory IP67 hermetic sealing.
Optical UV-stabilized polyurethane (PU) vs. high-temperature solid silicone elastomer provides 5-10 year non-yellowing and anti-cracking warranties for coastal environments.
Explore real-world architectural media facades engineered and powered by MEKALEO LED pixel systems.
Input your project parameters to estimate total fixture wattage, required power supplies, and DMX controller ports.
Detailed technical answers for architectural lighting consultants, facade engineers, and project contractors.
We utilize automated vacuum potting injection machines with high-grade optical polyurethane (PU) or two-component silicone elastomer. This completely eliminates micro air bubbles, ensuring zero moisture penetration even when submerged up to 2 meters underwater.
Standard center-to-center pitch ranges between 80mm and 250mm. For custom cable jumps exceeding 1.5 meters (such as across structural expansion joints or window mullions), signal booster repeaters or differential DMX transceivers are integrated.
UCS512G6 features a dedicated address-writing wire (ADDR). Using our handheld or software address writer, you can write sequential DMX start channels to 1,024 pixels in one second without opening enclosures or adjusting hardware DIP switches.
Yes. We provide custom wire jacket colors (Black, White, Transparent, or RAL custom colors) and flame-retardant PC body finishes to seamlessly match your building envelope’s architectural powder-coating color.
Access comprehensive CAD blocks, Dialux IES photometric files, wiring diagrams, and official product catalog.
Dialux / Relux photometric distribution data for X30, MDL35, X50, CL80.
Request IES PackAutoCAD .DWG profile drawings, aluminum track mounting details, and Revit models.
Request CAD FilesFull DMX master/sub-controller topology, Art-Net distribution, and power injection guides.
Download SchematicsComplete MEKALEO 2026 Architectural Lighting & Media Facade Catalog (PDF/PPTX).

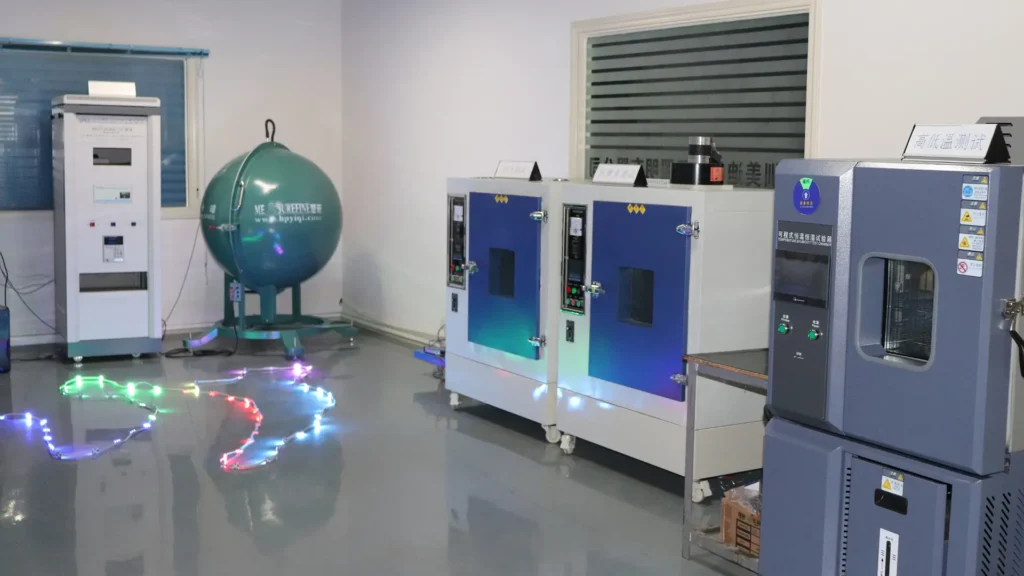

Download CatalogEvery MEKALEO LED pixel production batch undergoes stringent laboratory stress testing before project shipment.
How lighting designers and facade consultants determine the optimal pixel specification.
Determine minimum viewer distance. Rule of thumb: Pixel Pitch (mm) ≈ Viewing Distance (meters) × 10 to 15.
Choose Milky Dome for wide 180° diffusion or Clear/Diamond lens for long-range photometric punch.
Select DMX512 / UCS512G6 for large building facades; SPI WS2811 for budget-conscious interior or short-run accents.
Select aluminum track profiles for rigid linear facades or stainless steel wire rope mesh for high-transparency freeform surfaces.
Select any two MEKALEO pixel light models for an instant side-by-side engineering comparison.
Direct manufacturer capabilities backed by ISO9001 certified cleanroom assembly lines and rigorous international certifications.
Backed by Mean Well / Philips LED driver partnerships and premium Epistar/Cree/Nationstar gold-wire SMD LEDs.
Custom PCB layout design, dedicated housing injection molds, custom wire color matching (RAL codes), and custom wire lengths.
High-speed automated SMT lines and vacuum potting machinery ensure rapid turnaround for fast-track architectural tenders.
Fully certified under CE, RoHS, FCC, IP67 waterproof, and UL94-V0 fire-retardant standards for global project approvals.
Engineering diagnostics for rapid on-site troubleshooting during commissioning and long-term facade operation.
Root Cause: DMX line reflection or lack of terminal impedance matching.
Fix: Install a 120Ω 1/4W termination resistor between DMX+ and DMX- at the very last pixel of each universe run.
Root Cause: Excessive DC voltage drop along long serial runs.
Fix: Inject intermediate DC power trunk lines every 100 pixels (DC24V) or 50 pixels (DC12V) using ≥2.5mm² power cables.
Root Cause: Physical damage or internal driver IC breakdown.
Fix: In UCS512G6 parallel systems, other nodes continue running. Replace the faulty node using MEKALEO IP67 waterproof quick-connectors in under 60 seconds.
Complete your facade lighting architecture with complementary high-transparency mesh screens, linear fixtures, and landmark case studies.
High-transparency flexible media screens engineered for building glass curtain walls.
Product Detail68% transparency, 5500 nits high daylight brightness exterior LED grid mesh.
PortfolioBrowse landmark bridges, shopping centers, and high-rise facades across 40+ countries.
ManufacturerOver 15 years of precision architectural LED manufacturing in Zhongshan & Shenzhen, China.
Whether you need custom pitch wiring drawings, Dialux IES lighting simulation, sample testing units, or a detailed BOM tender quote, our senior facade lighting engineers are ready to assist.
Receive formal engineering BOM proposals & CAD layouts within 1 business day.
Request verified X30–CL80 physical sample modules for client mockup approval.
Direct manufacturer guarantee with full CE, RoHS, FCC & IP67 certifications.
