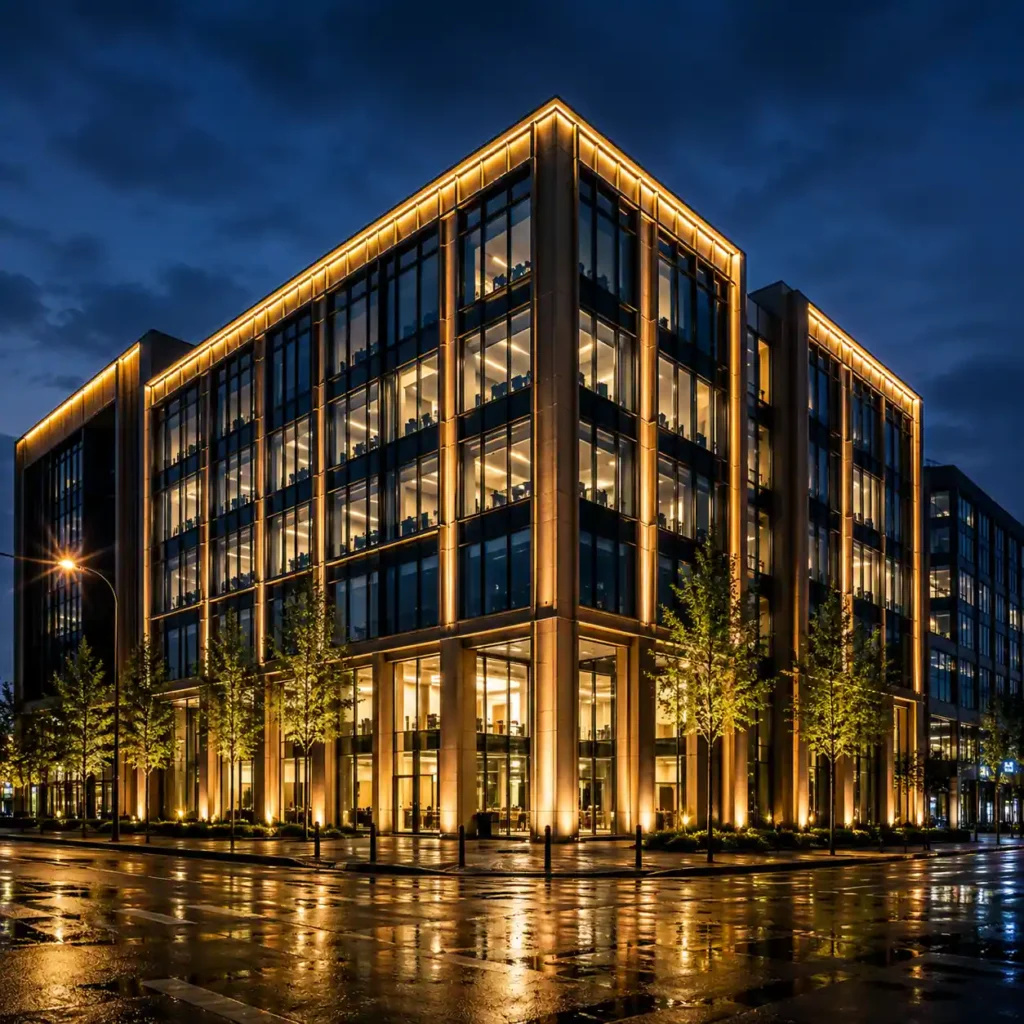

Facade Lighting
Facade lighting transforms how buildings are seen and experienced after dark. A well-planned lighting system can reveal architectural details, emphasize materials, strengthen a building’s identity, and improve the visual quality of its surroundings.
We provide outdoor LED facade lighting solutions for commercial buildings, hotels, shopping centers, bridges, landmarks, public spaces, and large-scale media facades. From uniform wall washing and precise accent lighting to dynamic color effects and direct-view media installations, each solution can be configured according to the architecture, viewing distance, installation environment, and project goals.
What Is Facade Lighting?
Facade lighting is the use of exterior lighting to illuminate, outline, accent, or visually transform the external surfaces of a building. It combines lighting design, architectural analysis, luminaire selection, installation planning, and control technology to create the intended nighttime appearance.
An effective facade lighting design does more than make a building brighter. It considers the structure, proportions, materials, viewing angles, surrounding environment, and purpose of the building. Depending on the project, lighting may be used to:
- Illuminate an entire facade uniformly;
- Highlight columns, windows, arches, or architectural details;
- Reveal the texture of stone, brick, concrete, or metal;
- Outline the shape and height of a building;
- Create static or dynamic color scenes;
- Display patterns, animations, or video content;
- Improve nighttime visibility and architectural recognition.
The right solution depends on whether the project requires functional illumination, architectural enhancement, dynamic decorative lighting, or a programmable media facade.
Benefits of Architectural Facade Lighting
Enhance Architectural Identity
Facade lighting makes architectural forms visible after sunset and helps communicate the identity of a building. Carefully positioned light can emphasize proportions, materials, structural lines, entrances, and signature design elements.
Create a Strong Nighttime Presence
Hotels, shopping centers, office buildings, landmarks, and entertainment venues can use exterior lighting to create a more recognizable and engaging nighttime appearance.
Highlight Materials and Details
Different lighting techniques can reveal the texture and character of stone, brick, concrete, glass, metal panels, and decorative surfaces. Grazing light emphasizes relief and texture, while wall washing produces a smoother and more uniform visual effect.
Support Wayfinding and Visual Comfort
Lighting around entrances, pathways, and important architectural features can help visitors understand the building and navigate its surroundings. Good optical control is important for reducing glare and avoiding excessive brightness.
Enable Dynamic Visual Communication
RGB, RGBW, pixel-controlled lighting, and LED mesh displays allow a facade to present color scenes, animations, branded content, and event-based visual effects.
Improve Energy and Maintenance Efficiency
Efficient LED technology, zoning, dimming, scheduling, and remote control can reduce unnecessary operating time and energy consumption. Durable outdoor-rated systems can also reduce long-term maintenance requirements.
Facade Lighting Techniques
Different buildings require different lighting techniques. The choice should be based on the facade structure, surface material, mounting conditions, viewing distance, desired effect, and local environmental requirements.

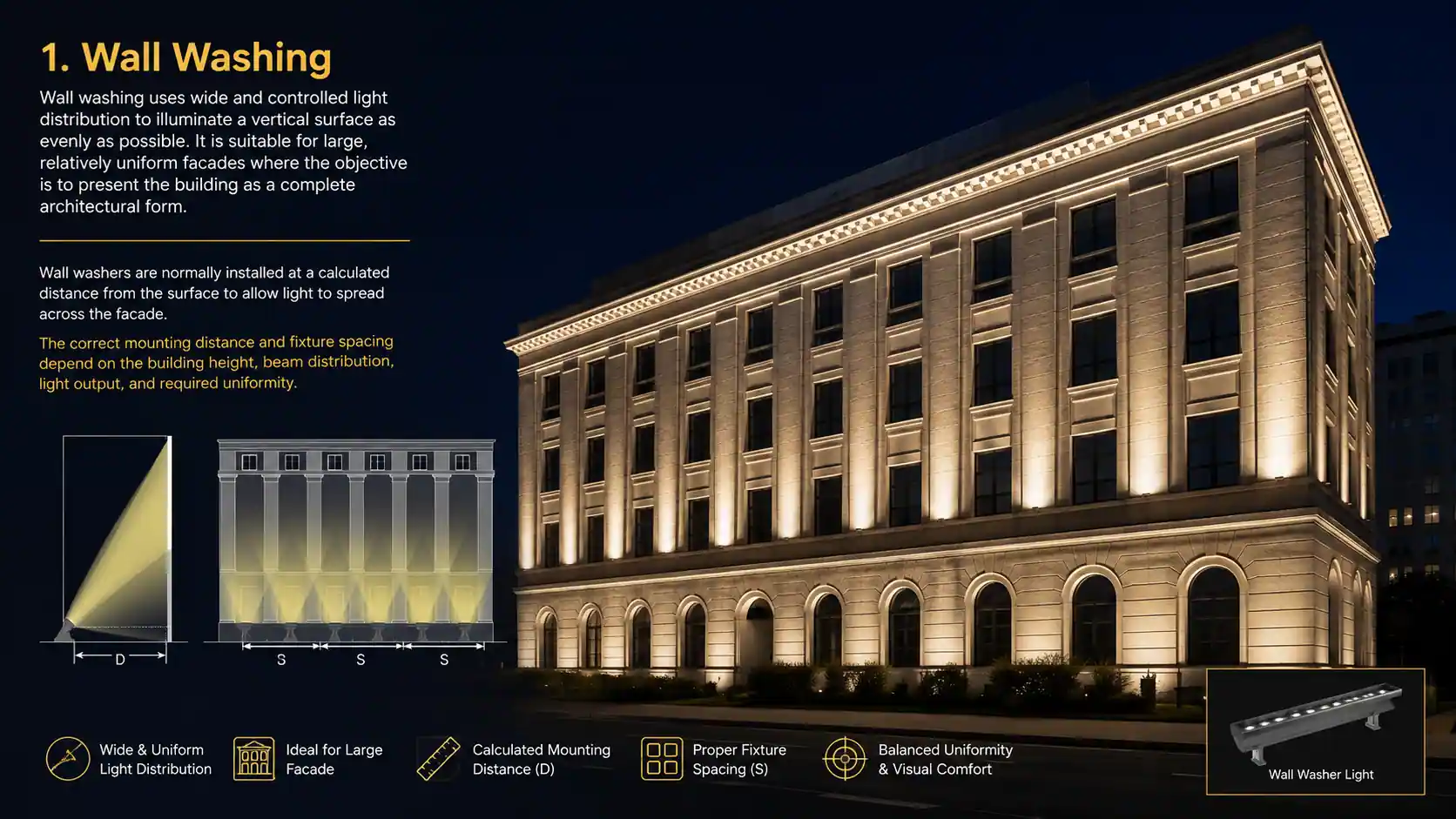

1. Wall Washing
Wall washing uses wide and controlled light distribution to illuminate a vertical surface as evenly as possible. It is suitable for large, relatively uniform facades where the objective is to present the building as a complete architectural form.
Wall washers are normally installed at a calculated distance from the surface to allow light to spread across the facade. The correct mounting distance and fixture spacing depend on the building height, beam distribution, light output, and required uniformity.
Suitable for:
- Commercial building facades;
- Hotels and resorts;
- Museums and cultural buildings;
- Shopping centers;
- Public and institutional buildings.
Recommended products:
- LED Wall Washer;
- LED Flood Light;
- Outdoor LED Linear Light.

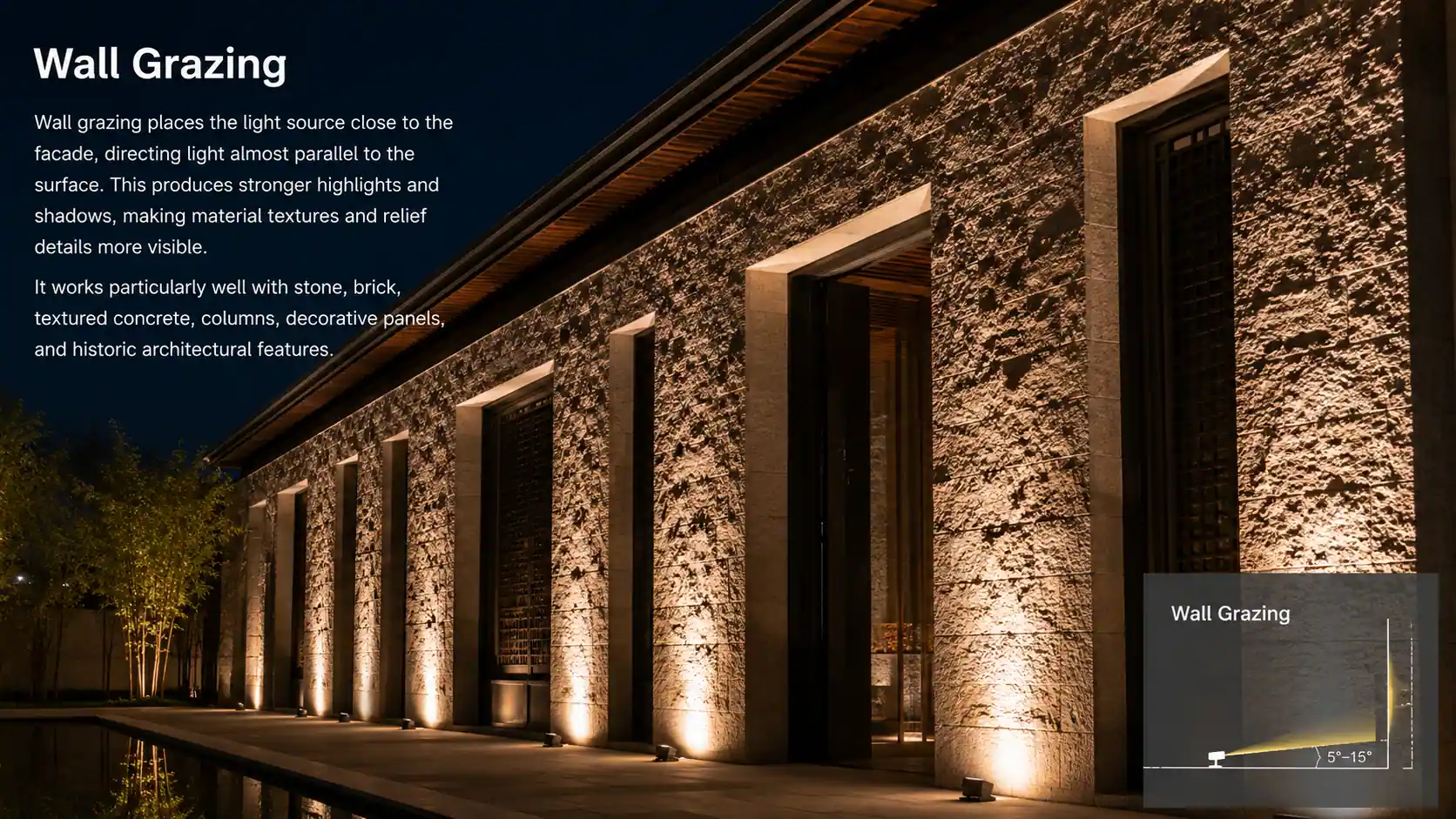

2. Wall Grazing
Wall grazing places the light source close to the facade, directing light almost parallel to the surface. This produces stronger highlights and shadows, making material textures and relief details more visible.
It works particularly well with stone, brick, textured concrete, columns, decorative panels, and historic architectural features. On smooth or unstructured walls, incorrect spacing may create unwanted light patterns, so fixture placement must be carefully planned.
Suitable for:
- Historic buildings;
- Stone and brick facades;
- Columns and reliefs;
- Textured exterior walls;
- Architectural details.
Recommended products:
- LED Wall Washer;
- Outdoor LED Linear Light;
- Narrow-beam LED Flood Light.

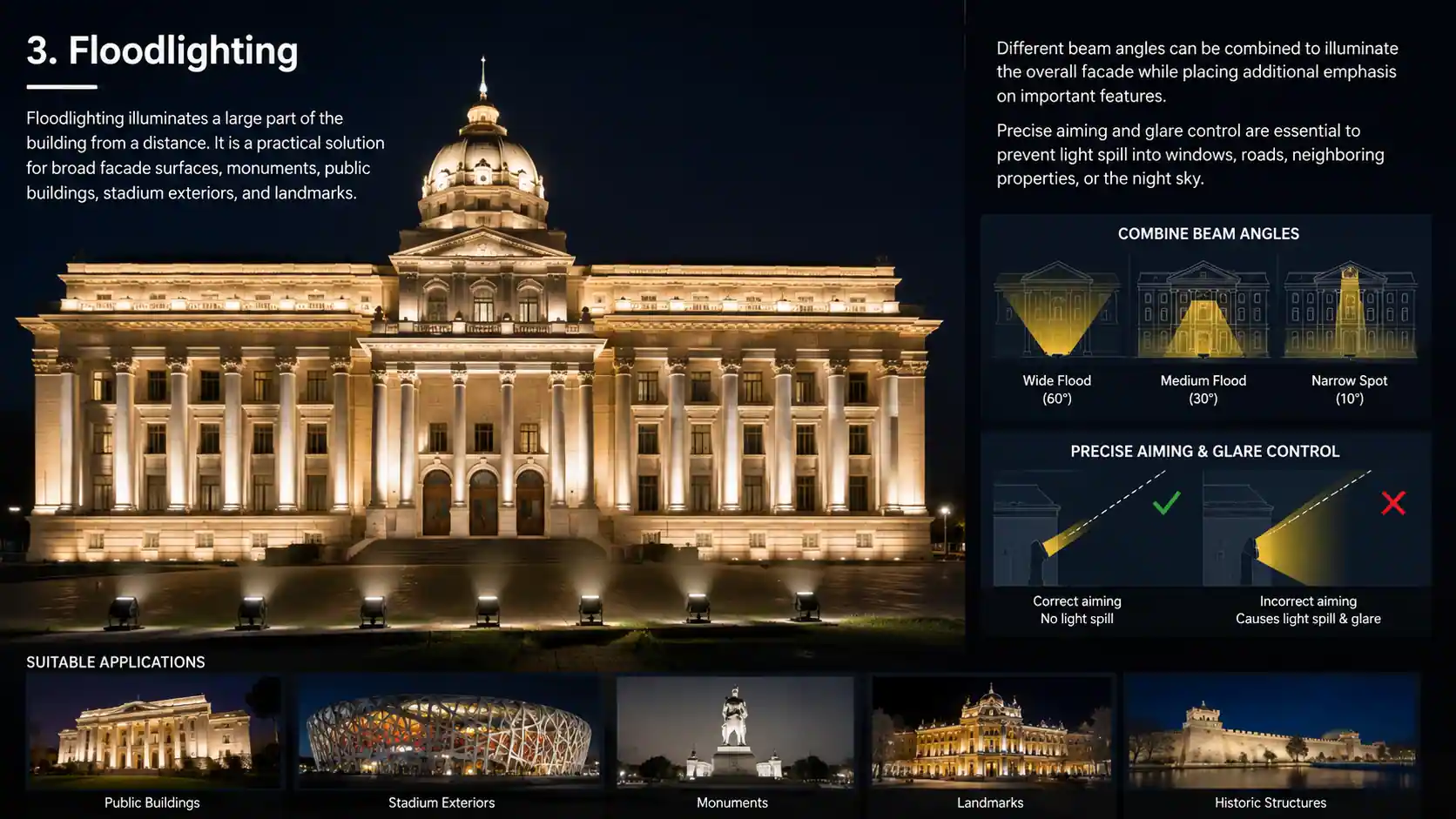

3. Floodlighting
Floodlighting illuminates a large part of the building from a distance. It is a practical solution for broad facade surfaces, monuments, public buildings, stadium exteriors, and landmarks.
Different beam angles can be combined to illuminate the overall facade while placing additional emphasis on important features. Precise aiming and glare control are essential to prevent light spill into windows, roads, neighboring properties, or the night sky.
Suitable for:
- Large commercial buildings;
- Monuments and landmarks;
- Stadium exteriors;
- Public buildings;
- Distant mounting positions.
Recommended product:
- LED Flood Light.

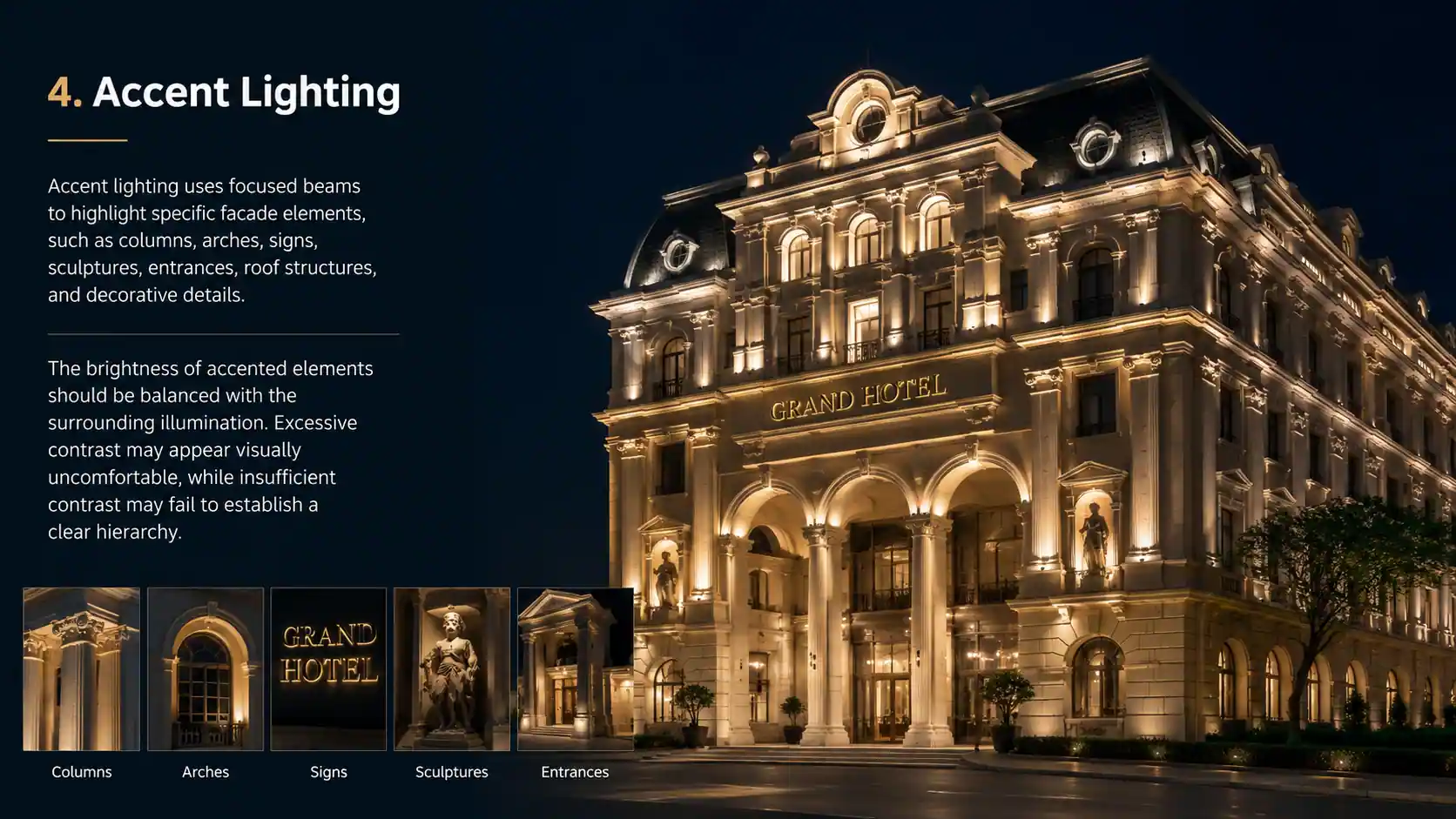

4. Accent Lighting
Accent lighting uses focused beams to highlight specific facade elements, such as columns, arches, signs, sculptures, entrances, roof structures, and decorative details.
The brightness of accented elements should be balanced with the surrounding illumination. Excessive contrast may appear visually uncomfortable, while insufficient contrast may fail to establish a clear hierarchy.
Suitable for:
- Building entrances;
- Columns and arches;
- Architectural ornaments;
- Signage and logos;
- Sculptures and public art.
Recommended products:
- LED Flood Light;
- LED Wall Washer;
- Outdoor LED Linear Light.

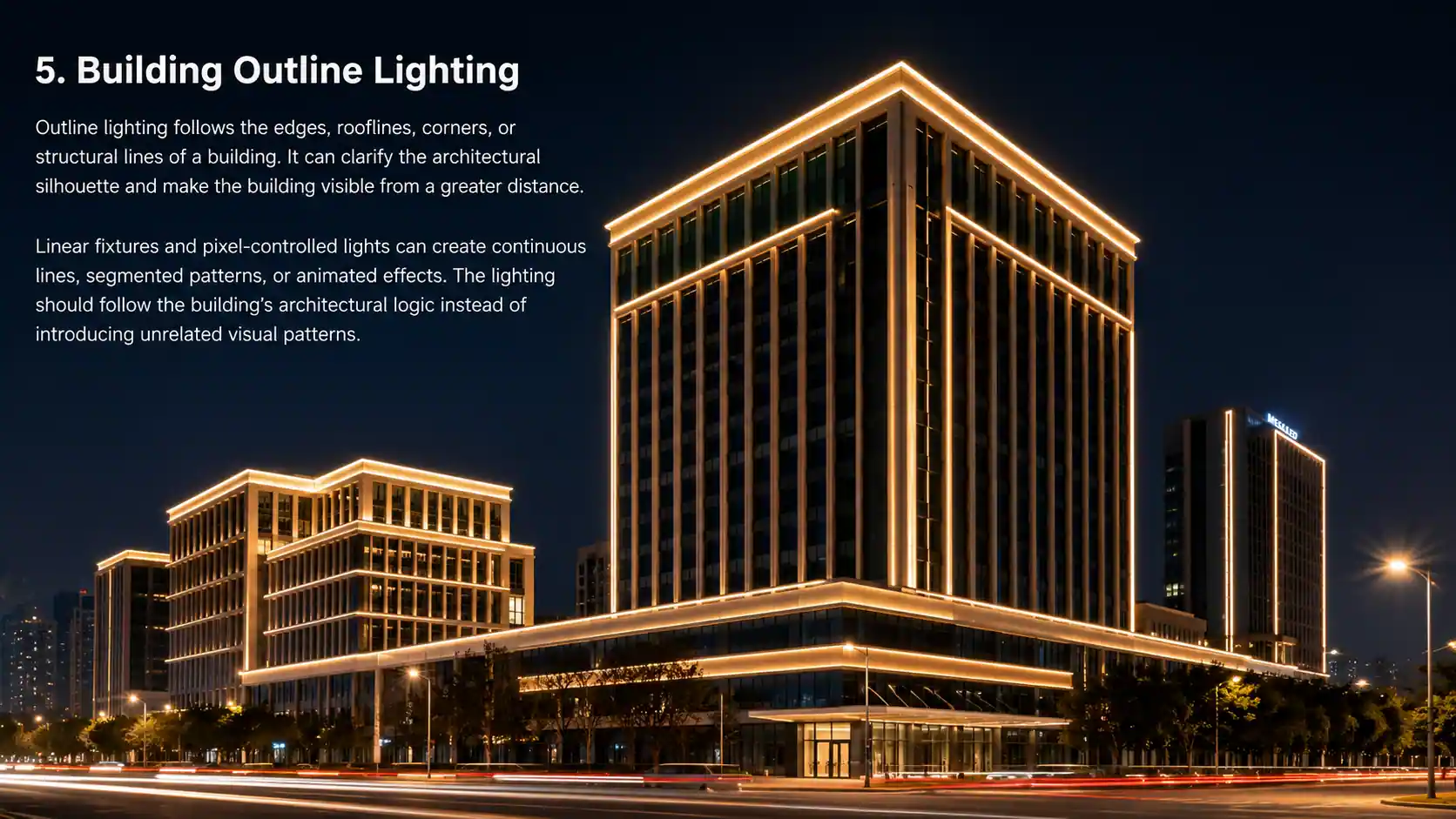

5. Building Outline Lighting
Outline lighting follows the edges, rooflines, corners, or structural lines of a building. It can clarify the architectural silhouette and make the building visible from a greater distance.
Linear fixtures and pixel-controlled lights can create continuous lines, segmented patterns, or animated effects. The lighting should follow the building’s architectural logic instead of introducing unrelated visual patterns.
Suitable for:
- High-rise buildings;
- Hotels and resorts;
- Shopping centers;
- Entertainment venues;
- Rooflines and architectural edges.
Recommended products:
- Outdoor LED Linear Light;
- LED Pixel Light;
- Permanent Eaves Light.

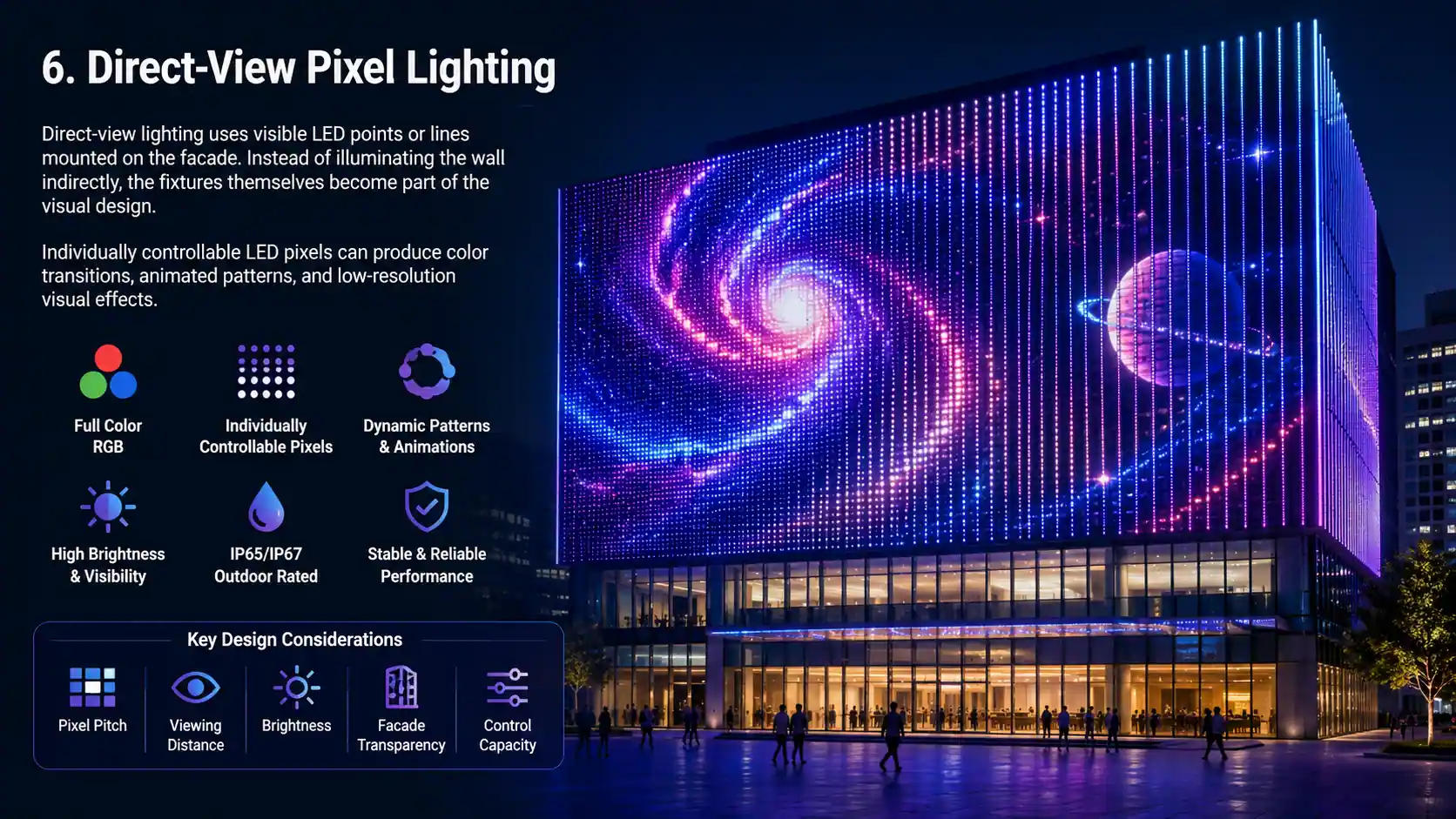

6. Direct-View Pixel Lighting
Direct-view lighting uses visible LED points or lines mounted on the facade. Instead of illuminating the wall indirectly, the fixtures themselves become part of the visual design.
Individually controllable LED pixels can produce color transitions, animated patterns, and low-resolution visual effects. Pixel pitch, brightness, viewing distance, facade transparency, and control capacity should be evaluated during system design.
Suitable for:
- Dynamic architectural facades;
- Entertainment venues;
- Shopping malls;
- Stadium exteriors;
- Large creative installations.
Recommended products:
- LED Pixel Light;
- Outdoor LED Linear Light.
Facade Types and Lighting Approaches
Lighting Solutions for Different Facade Types

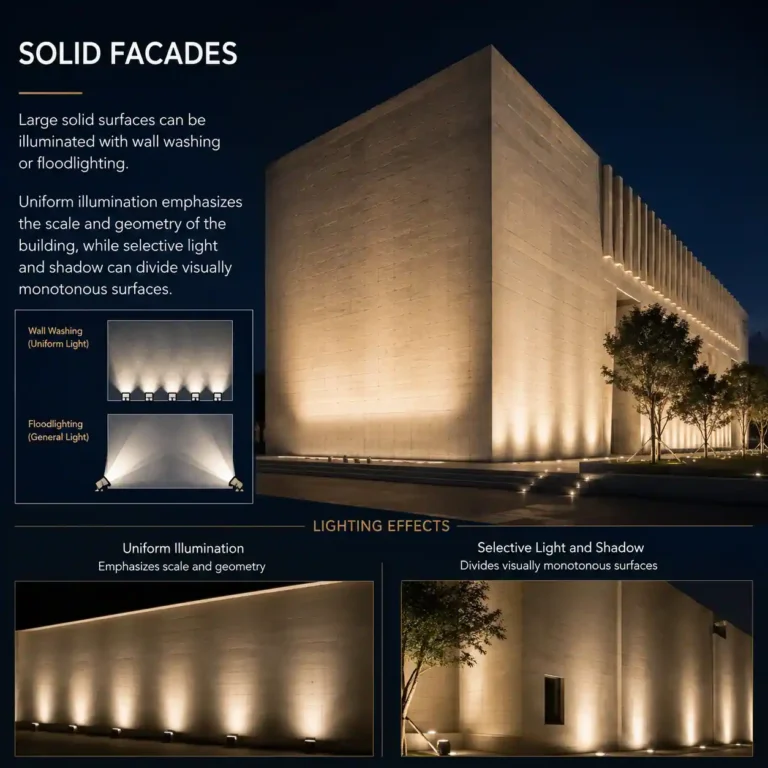

Solid Facades
Large solid surfaces can be illuminated with wall washing or floodlighting. Uniform illumination emphasizes the scale and geometry of the building, while selective light and shadow can divide visually monotonous surfaces.

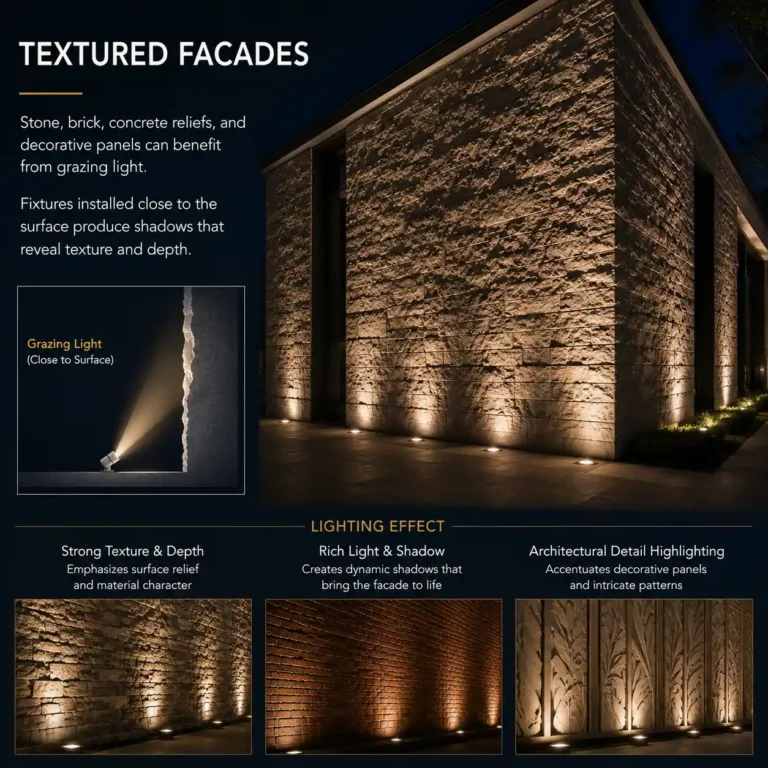

Textured Facades
Stone, brick, concrete reliefs, and decorative panels can benefit from grazing light. Fixtures installed close to the surface produce shadows that reveal texture and depth.

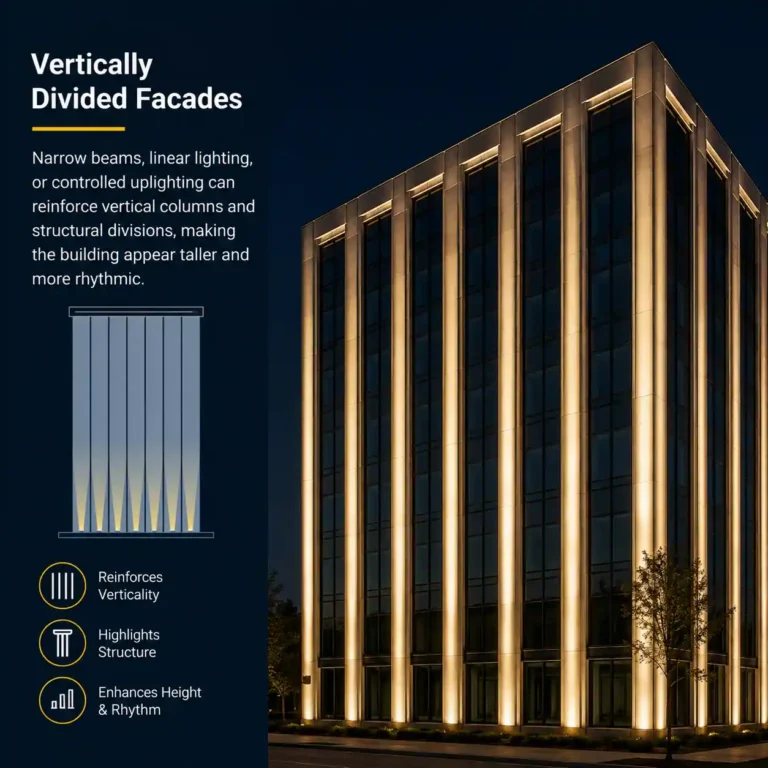

Vertically Divided Facades
Narrow beams, linear lighting, or controlled uplighting can reinforce vertical columns and structural divisions, making the building appear taller and more rhythmic.

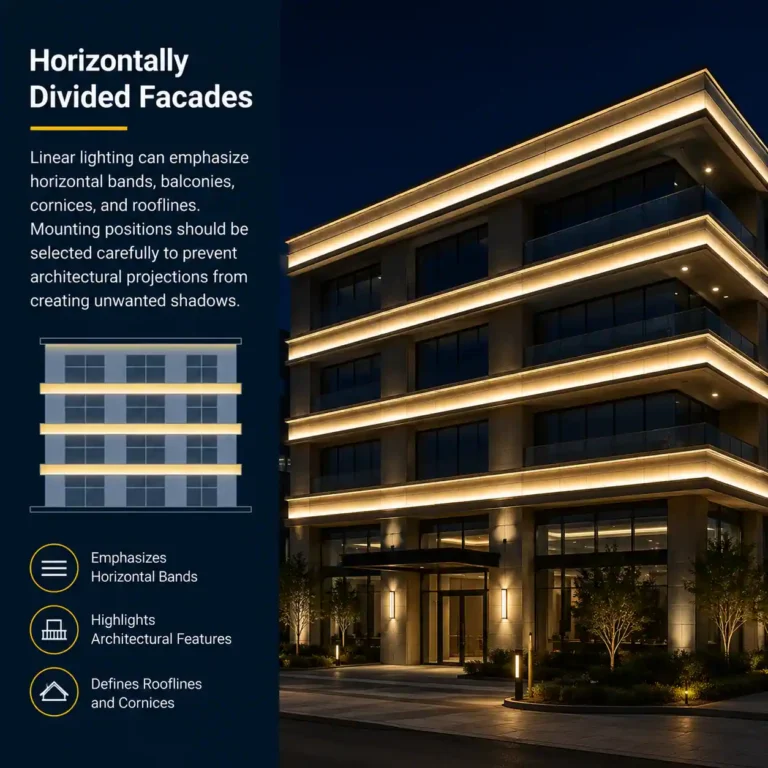

Horizontally Divided Facades
Linear lighting can emphasize horizontal bands, balconies, cornices, and rooflines. Mounting positions should be selected carefully to prevent architectural projections from creating unwanted shadows.

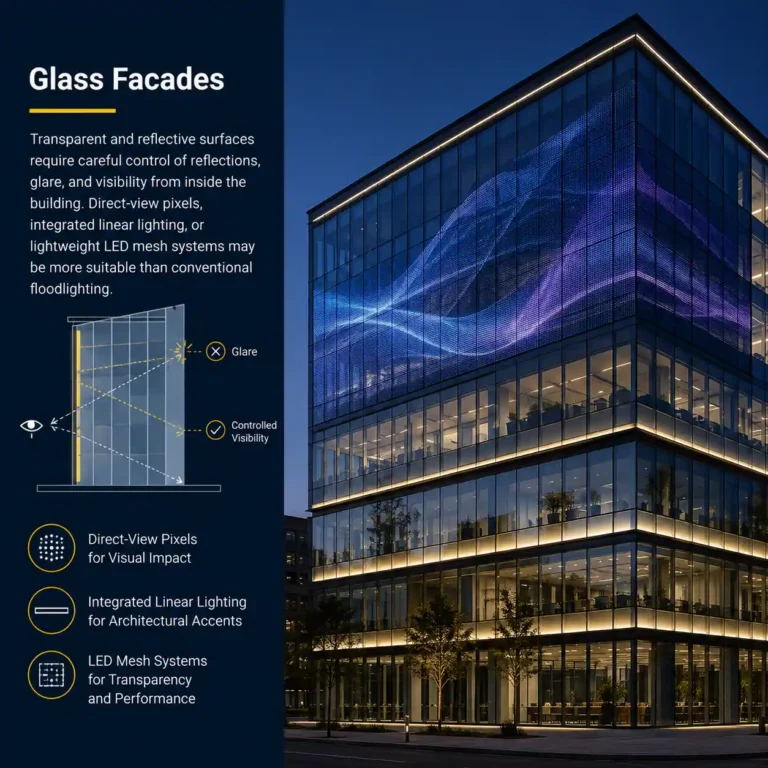

Glass Facades
Transparent and reflective surfaces require careful control of reflections, glare, and visibility from inside the building. Direct-view pixels, integrated linear lighting, or lightweight LED mesh systems may be more suitable than conventional floodlighting.
Perforated and Mesh Facades
LED pixels and linear fixtures can be integrated into perforated panels, mesh structures, and secondary facade systems to create depth, patterns, and dynamic visual effects.
FEATURED PROJECTS

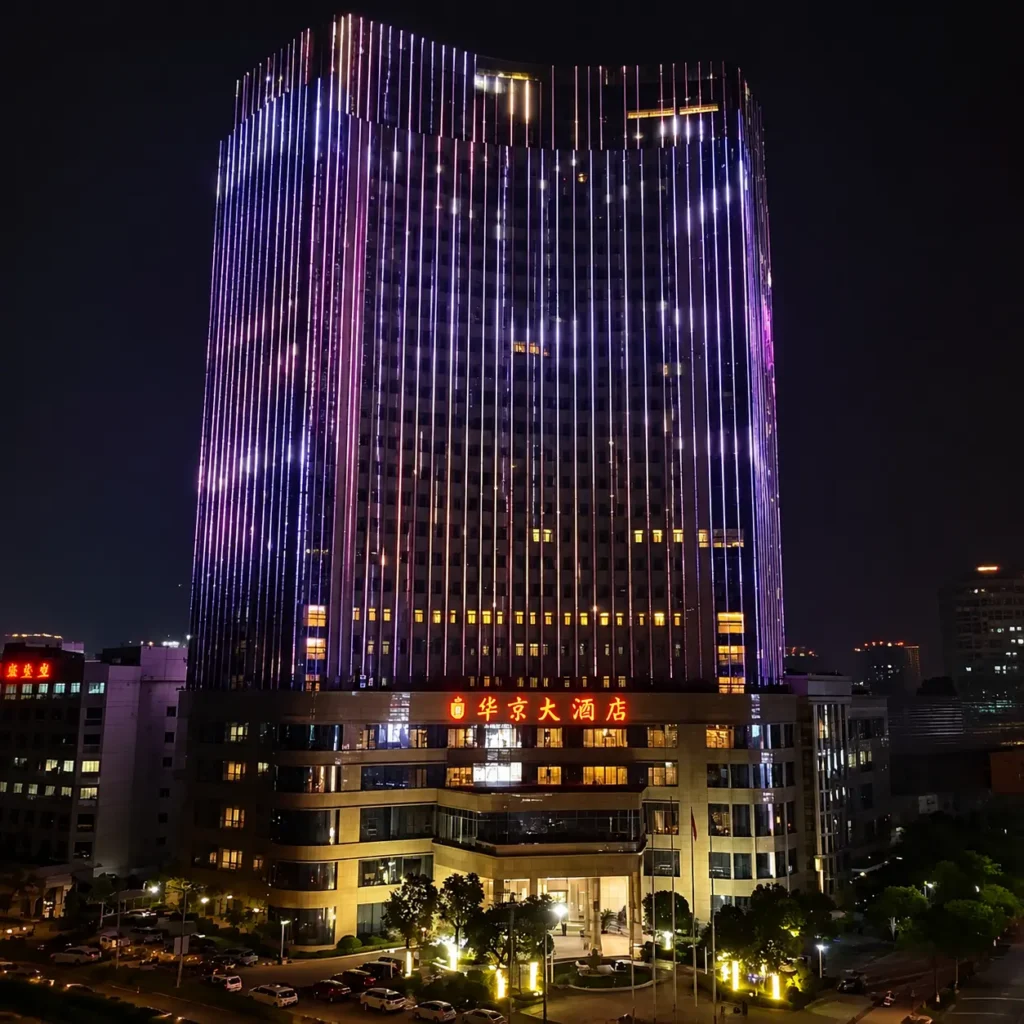

Hotel Facade & Staircase Lighting Project
- Application scenario: Hotel
- Product used: Linear lights
- Highlight: Full-color dynamic lighting creates a purple-blue gradient effect, adding a modern and elegant atmosphere to the building facade.

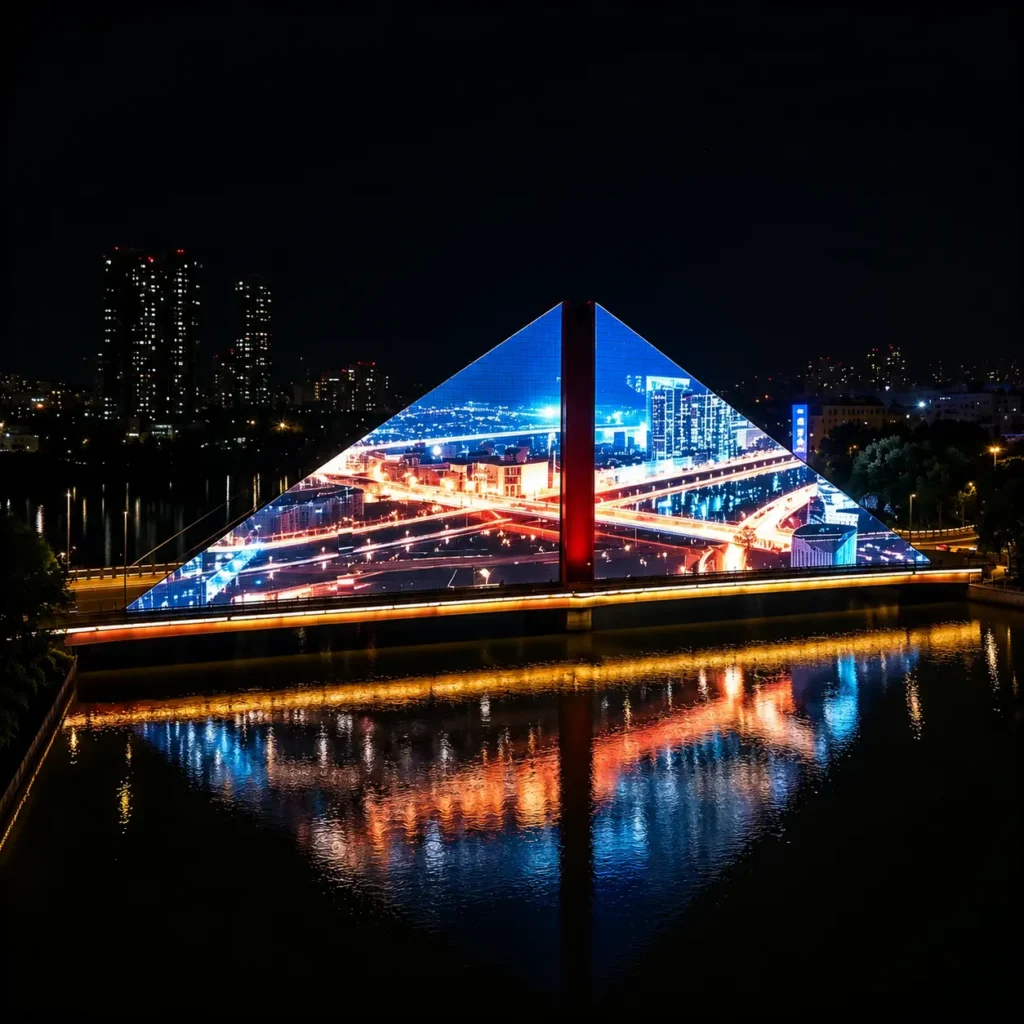

Bridge & Commercial Facade Transparent Lighting Project
- Application scenario: Bridge / Commercial Facade
- Product used:LED Mesh Screen
- Highlight: A large-scale transparent display delivers high-impact visual content while maintaining architectural transparency.

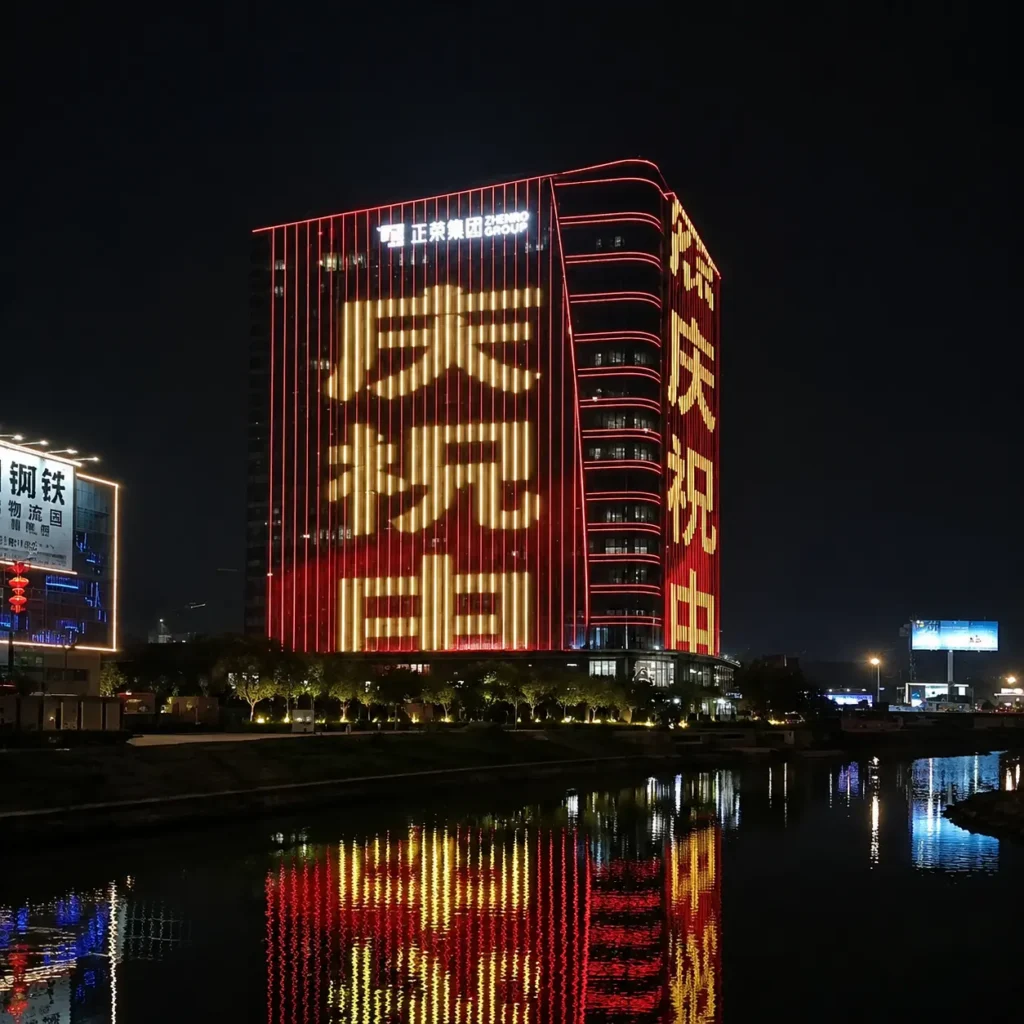

- Application scenario:Office Building
- Product used:LED Linear Lights
- Highlight:Continuous linear lighting emphasizes the building’s structure and creates a clean, modern nighttime outline.
Ferris Wheel Exterior Lighting Renovation Project
- Application scenario: Ferris wheel
- Product used:LED Pixel Light
- Highlight: Dynamic RGB lighting effects transform the Ferris wheel into an eye-catching urban landmark.
FAQ: Outdoor LED Facade Lighting Products & Architectural Lighting Solutions
What outdoor LED facade lighting products does MEKALEO offer?
MEKALEO provides a full range of professional outdoor LED facade lighting products for architectural, commercial, landscape and urban landmark projects. Our core series include LED pixel lights, LED mesh screens, LED linear lights, LED wall washers, LED floodlights, and intelligent control systems. We also offer customized complete facade lighting systems based on project drawings and site conditions.
How do I choose the right outdoor LED facade lighting products?
Product selection depends on building type, facade material, installation height, viewing distance, and desired lighting effects. Linear lights and pixel lights are ideal for outline decoration; wall washers and floodlights suit uniform wall brightening; LED mesh screens work best for transparent exterior applications. Our team provides tailored product recommendations.
Where are outdoor LED facade lighting products commonly used?
They are widely applied to commercial buildings, offices, hotels, shopping malls, urban bridges, waterfront landscapes, municipal facilities, and landmark structures, covering most modern architectural exterior night lighting and renovation projects.
Can outdoor LED facade lighting products display animations or dynamic effects?
Yes. When paired with our intelligent control systems, LED pixel lights and mesh screens support dynamic animations, color gradients, pattern changes, and synchronized lighting effects to create expressive exterior visual designs.
Are MEKALEO LED facade lights suitable for long-term outdoor use?
Does MEKALEO provide complete customized facade lighting solutions?
Yes. We offer one-stop turnkey solutions including lighting design, product selection, control system configuration, programming, installation guidance, and technical support to deliver full-system facade lighting tailored to your project.
